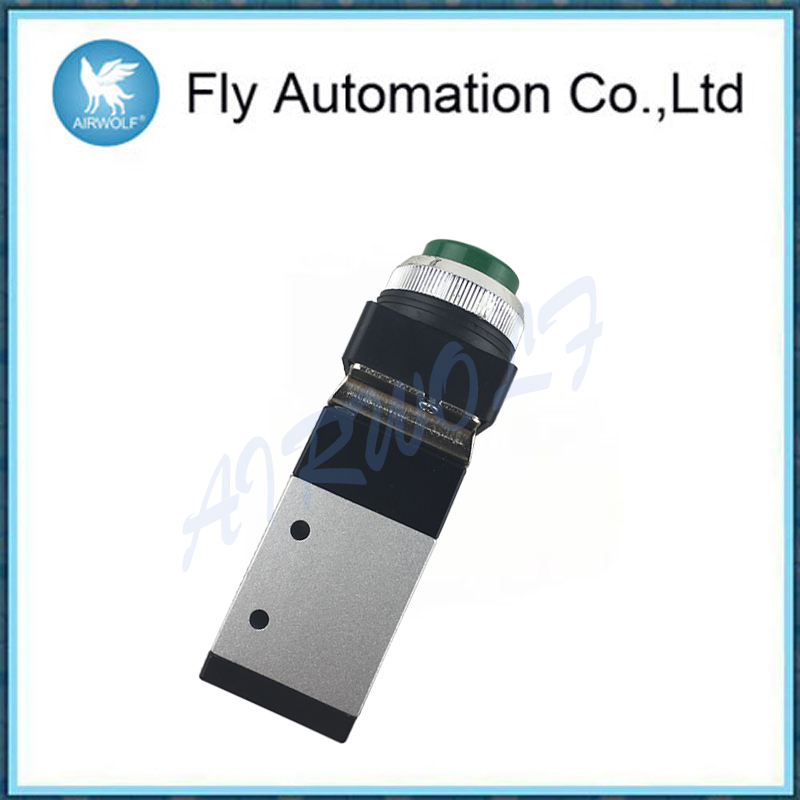

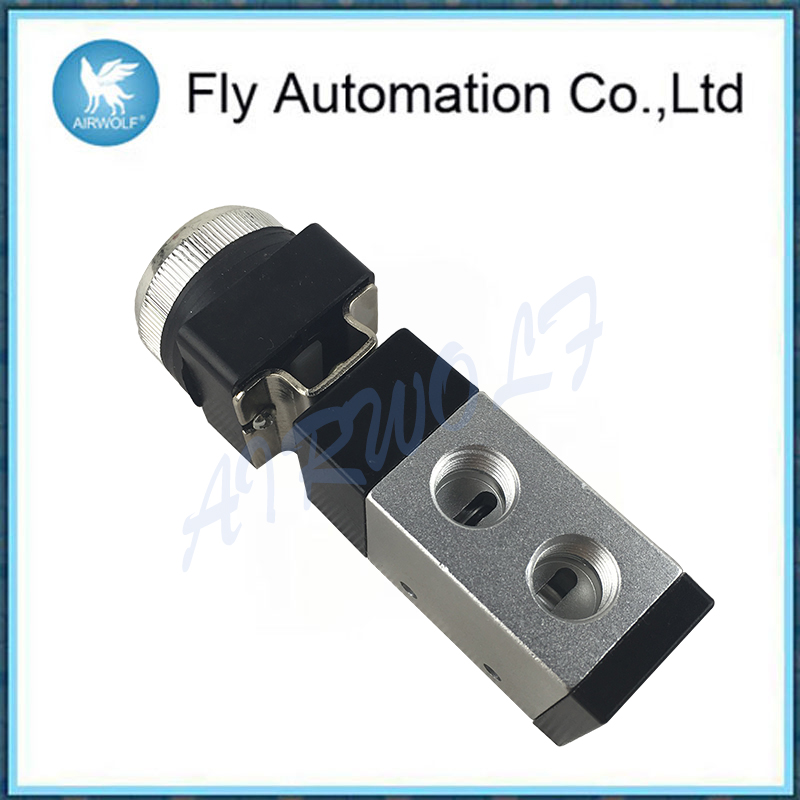

Palm Button MSV98322PP MSV98322PPL MSV98322TB 3/2 Way Aluminium Alloy Twist Selector Mechanical Valve
Features
1. To be installed in moving devices like air cylinder, slide, etc.
2. Various operating styles.
3. Panel bore size Φ30(Option Φ25)
Specification
| Model | MSV9832-02 |
| Port size | 1/4"(Option 1/8") |
| Body material | Aluminum alloy |
| Panel dimension | 30mm(Option: 25mm) |
| Fluid | Compressed air |
| Sectional area | 18mm² |
| Operating pressure range | 0~9 kgf/cm² |
| Max. operating pressure | 10 kgf/cm² |
| Ambient temperature | -10~60℃ |
| Standard operator color | Black: TB, LB; Red: PB, PP, PPL, EB |
