(1)Solenoid coil has one-touch terminal block with easy electrical wiring.
For outdoor use, use aluminum die-casting material body.
(2) A timer controller for quick opening and closing of valve and a waterproofed, up to 180'C heat resistance coil are used.
(3)Diaphragm is manufactured with special nylon and synthetic rubber, so it is excellent
even in any temperature and environment.
Specifications:
| Product NO. | JOIL |
| Product type | CR131 |
| Normal Voltage | AC220V DC24V |
| Normal Power | AC:24VA DC:57W |
| Insulation Class | F , H |
| Connection Type | DIN43650A |
| Applicability | Pulse valves |
Installation:
Slide solenoid over ferrule tube. Ensure terminals are on top. For JICI solenoids ensure nylon washer is in place. Slide clip onto pilot iron top.
Ensure voltage supplied to solenoid is within -10% and +15% of the solenoid rated voltage.
Construction
Encapsulation: PA-6
C-frame: Mild steel zinc passivated
Bobbin: PA-6
Insulation class: B/130°C
Rating: Non-continuous use only
Clip: Mild steel (mechanically plated)
Pictures:

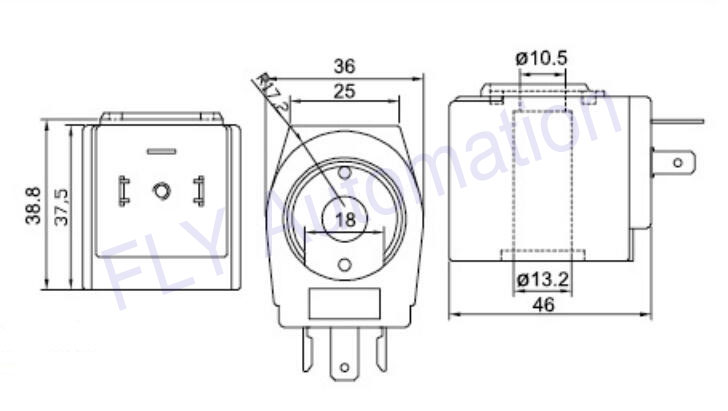

Dimension Size:
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
Competitive Advantage
| Our product features | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
