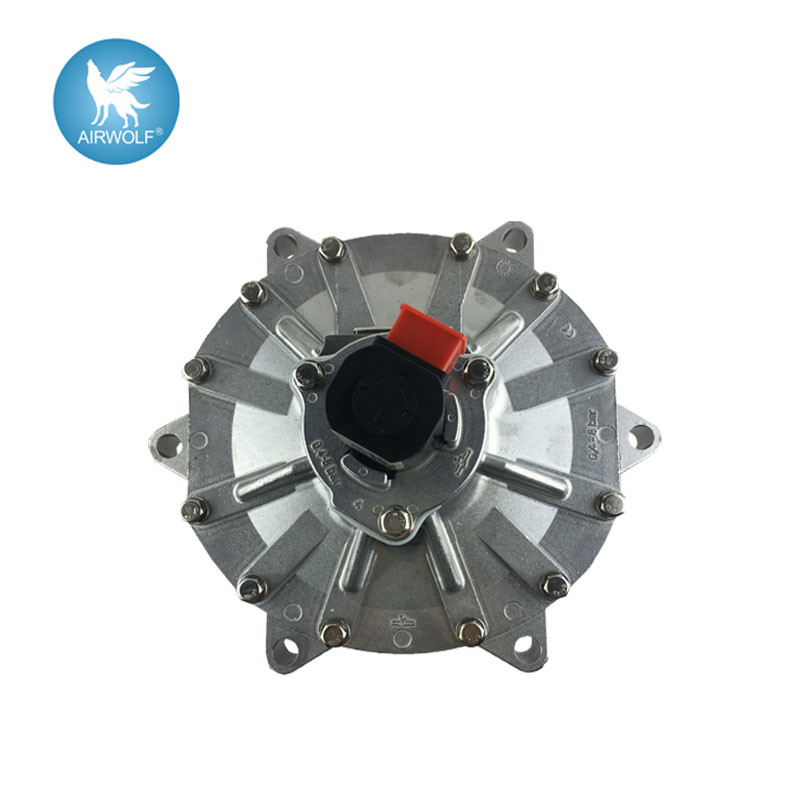

Norgren 8392900.8171 Tank Valve DN80 threads pneumatic pulse valve
Ordering Code: 8296700.8171
2/2-way valves DN 80
For air
Solenoid pilot operated
For tank mounting
Operating pressure 0.4 to 7.5 bar
Description (standard valve)
Switching function: normally closed
Flow direction: determined
Coil gas temperature: –40 °C to max. +85 °C
Ambient temperature: –20 °C to max. +85 °C
Mounting position: optional, preferably solenoid
vertical on top
Material
Body: Aluminium
Seat seal: TPE
Internal parts: TPU
Features
1. High flow rate
2. All internal components captive
3. Functional compact design
4. Solenoid interchangeable without tools
5. Integrated silencer
6. One-piece diaphragm for longer life

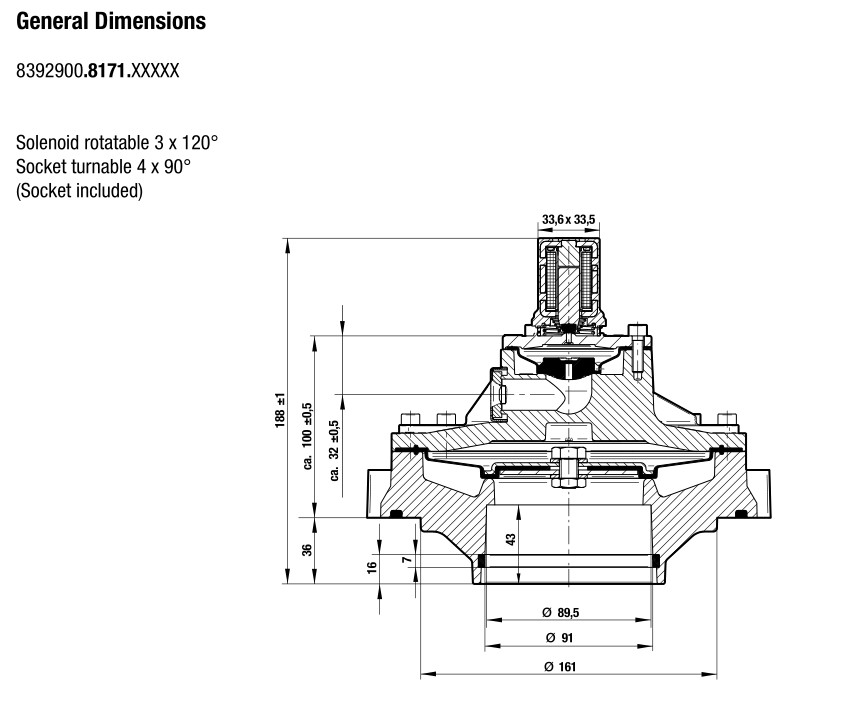

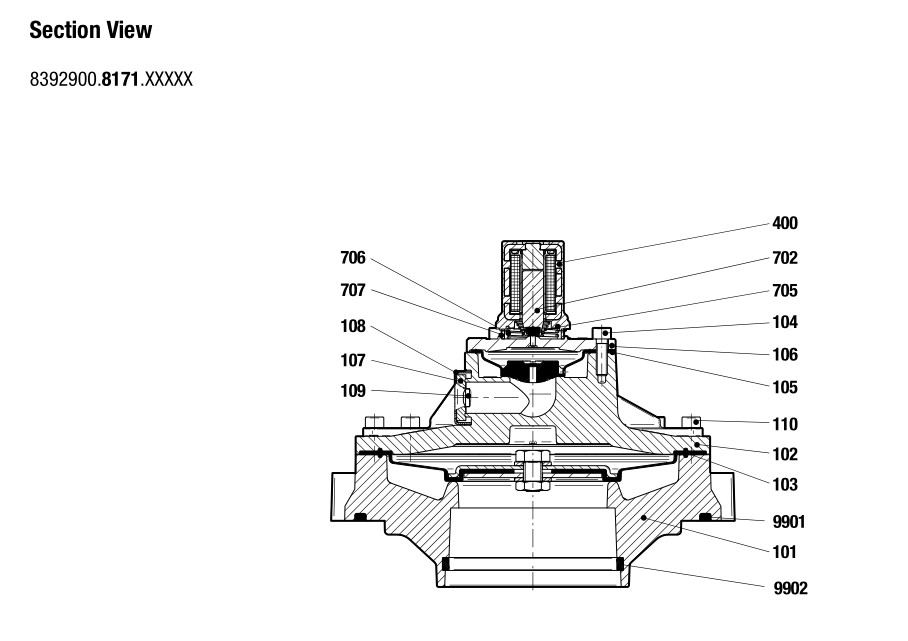

Drawing legend
01 Adapter body
102 Valve cover
*103 Diaphragm
104 Socket head cap screw
*105 Diaphragm
106 Valve cover
*107 Silencer
108 Silencer housing
109 Socket head cap screw
** Solenoid complete wearing unit, e.g. 8298000.8170.XXXXX for a solenoid 8170
400 Solenoid
702 Core
705 Pressure spring
706 Pressure spring
707 Silencer
1400 Socket (included)
9901 O-ring
9902 O-ring
solenoids / Valves
The solenoid system with bayonet connection is easily mounted –just push down and turn.
The internal components of the pilot system are captive.
The plastic encased solenoid can be turned to 3 different positions,120° apart, without using tools.
The factory fitted silencer prevents annoying noise and stops in-gress of foreign matter into the valve.
The solenoid design of the pilot offers maximum security againsticing.
The volume above the diaphragm is minimised for extremely fast opening with optimised peak pressures. The similary ideal closing
time ensures low air consumption.
All of the dynamically loaded valve elements are designed to last. The various parts of the case are designed for high air flow.
Available with internal BSP or NPT threaded connection to inter- national standards.
The heart of the filter valve is the TPE diaphragm
The TPE diaphragm is the key component in any filter valve de- signed to provide short pressure decay times and high kv-values.
Service life is 4-5 times longer than that of comparable, conven- tional fabric diaphragms. Our product filter systems eliminate the
danger that rubber particles could enter the product. The TPE material used has FDA approval (Food and Drug Administration, USA)
Temperature range - fluid temperature
Standard diaphragm: –40 °C to 85 °C
For higher temperatures: –10 °C to 140 °C
1 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping
2 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
3 . Integral pilot operated valves satisfy all relevant EC directives
4 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
5 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
