FESTO ISO cylinder DSBC-32-50-PPVA-N3 1376424 GTIN4052568016562 Pneumatic Air Cylinders

Brand Name : FESTO

Model Number : DSBC-32-50-PPVA-N3

Place of Origin : China

MOQ : 1pc

Price : EXW USD40-50

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 50 pcs per month

Delivery Time : 10-15 working days

Packaging Details : plastic bag, carton，OPP bag

Brand : FESTO

Part no : 1376424

GTIN : 4052568016562

Type : DSBC-32-50-PPVA-N3

Piston-rod end : Male thread

Design : Piston Piston rod Profile barrel

Contact Now

FESTO ISO cylinder DSBC-32-50-PPVA-N3 1376424 GTIN4052568016562 Pneumatic Air Cylinders

About product

1.ISO15552(ISO6431,VDMA24562).

2.Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes.

3.Standard profile with two sensor slots.

Technical Data

Stroke 50 mm
Piston diameter 32 mm
Piston rod thread M10x1.25
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard ISO 15552
Piston-rod end Male thread
Design Piston Piston rod Profile barrel
Position detection Via proximity switch

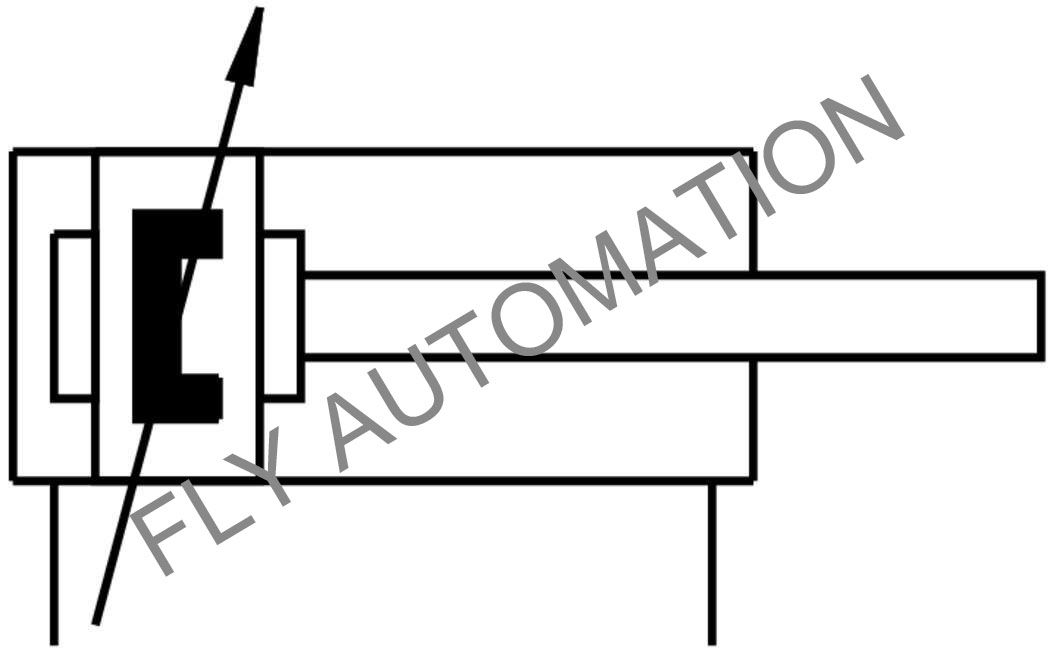

Symbol 00991235
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Cushioning length 17 mm
Basic weight for 0 mm stroke 465 g
Additional weight per 10 mm stroke 27 g
Type of mounting Via female thread With accessories Either:
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Die-cast aluminium, coated
Material piston seal TPE-U(PU)
Material piston Wrought aluminium alloy
Material piston rod High-alloy steel
Material piston rod wiper TPE-U(PU)
Buffer seal material TPE-U(PU)
Cushioning piston material POM
Material cylinder barrel Smooth-anodised wrought aluminium alloy
Material nut Galvanised steel
Material bearing POM
Material collar screws Galvanised steel

Another stroke as follow

Type Order no GTIN Price
DSBC-32-20-PPVA-N3 2123069 4052568251673 USD40-50
DSBC-32-25-PPVA-N3 1376422 4052568016555 USD40-50
DSBC-32-30-PPVA-N3 2123070 4052568251680 USD40-50
DSBC-32-40-PPVA-N3 1376423 4052568231675 USD40-50
DSBC-32-50-PPVA-N3 1376424 4052568016562 USD40-50
DSBC-32-60-PPVA-N3 2123071 4052568251697 USD40-50
DSBC-32-70-PPVA-N3 2123072 4052568251703 USD40-50
DSBC-32-80-PPVA-N3 1376425 4052568016579 USD40-50
DSBC-32-100-PPVA-N3 1376426 4052568016586 USD40-50
DSBC-32-125-PPVA-N3 1376427 4052568016593 USD40-50
DSBC-32-150-PPVA-N3 2123073 4052568251710 USD40-50
DSBC-32-160-PPVA-N3 1376428 4052568016609 USD40-50
DSBC-32-200-PPVA-N3 1376429 4052568016616 USD40-50
DSBC-32-250-PPVA-N3 1376430 4052568016623 USD40-50
DSBC-32-300-PPVA-N3 2123074 4052568251727 USD40-50
DSBC-32-320-PPVA-N3 1376431 4052568016630 USD40-50
DSBC-32-400-PPVA-N3 1376432 4052568016647 USD40-50
DSBC-32-500-PPVA-N3 1376433 4052568016654 USD40-50

PPV cushioning

FESTO ISO cylinder DSBC-32-50-PPVA-N3 1376424 GTIN4052568016562 Pneumatic Air Cylinders

With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.

There are so many kinds. Hurry to call me!
