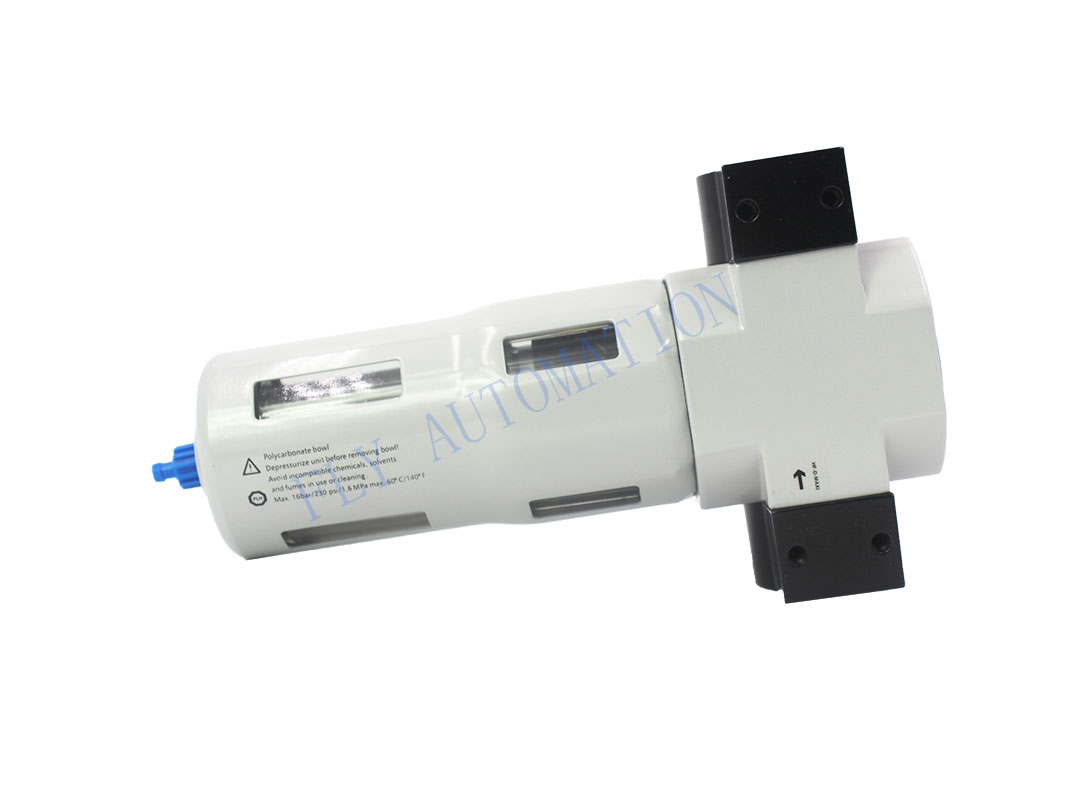

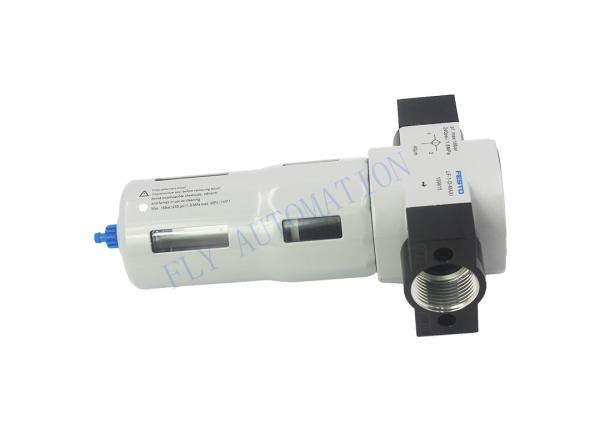

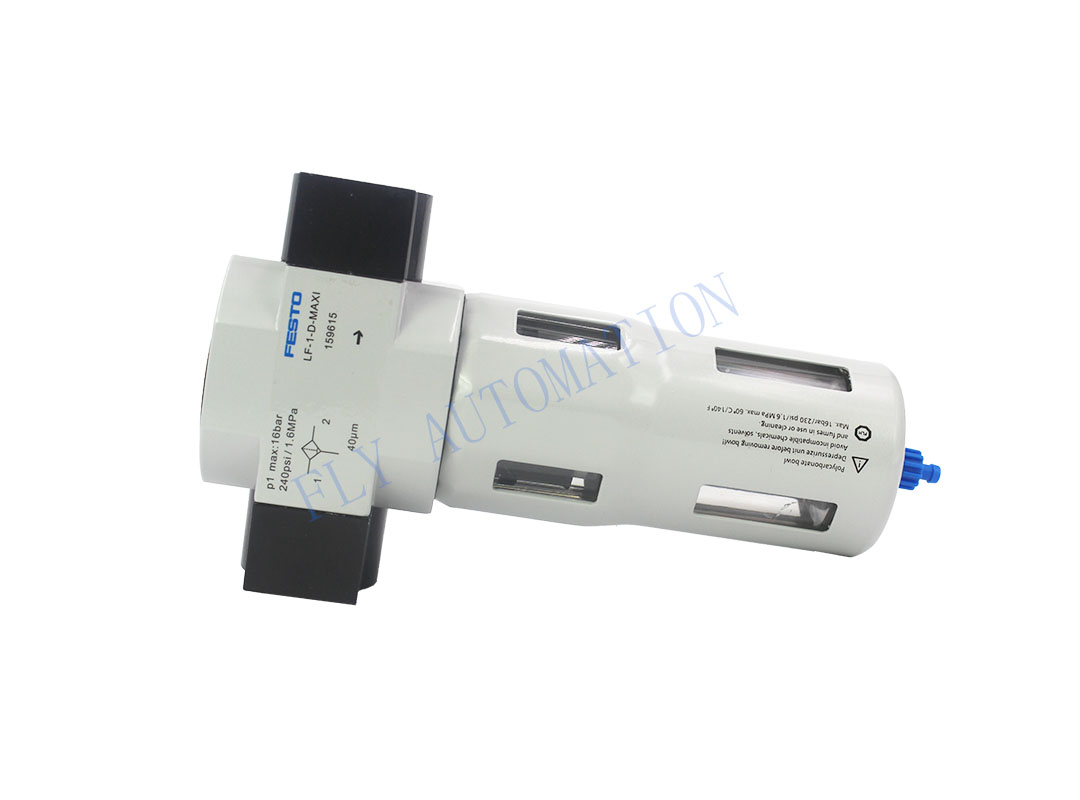

FESTO LF-1-D-MAXI G1 Filter Air Source Treatment 159615 PC D Series

Name: FESTO LF1DMAXI G1 Filter Air Source Treatment 159615 PC D Series
Brand: FESTO
Price: 1 USD

FESTO LF-1-D-MAXI G1 Filter Air Source Treatment 159615 PC D Series Manufactures

Brand Name : FESTO

Model Number : LF-1-D-MAXI

Certification : ISO Standand

Place of Origin : EU

MOQ : 1 PC

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram Paypal

Supply Ability : 500 PCS Per Week

Delivery Time : 7 working Days

Packaging Details : Plastic bags, boxes, cartons, Pallets or As customer's requirement

Grade of filtration : 40 µm

Size : Maxi

Standard nominal flow rate : 5300 l/min

Media temperature : -10 °C ... 60 °C

Product weight : 1440 g

Material bowl : PC

Contact Now

FESTO LF-1-D-MAXI G1 Filter 159615 PC D Series Air Source Treatment

Feature	Value
Size	Maxi Maxi
Series	D
Mounting position	Vertical +/-5°
Grade of filtration	40 µm
Condensate drain	Manually rotating
Design	Sintered filter with centrifugal separator Sintered filter with centrifugal separator
Max. condensate volume	80 ml
Bowl guard	Metal bowl guard
Symbol	991519
Operating pressure	0 bar ... 16 bar
Standard nominal flow rate	5300 l/min
Operating medium	Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases
Corrosion resistance class CRC	2 - Moderate corrosion stress
Storage temperature	-10 °C ... 60 °C
Air purity class at output	Compressed air to ISO 8573-1:2010 [7:8:4] Inert gases
Media temperature	-10 °C ... 60 °C
Ambient temperature	-10 °C ... 60 °C
Product weight	1440 g
Type of mounting	In-line installation With accessories
Pneumatic connection, port 1	G1
Pneumatic connection, port 2	G1
Note on materials	RoHS-compliant
Material filter	PE
Material housing	Die-cast zinc
Material bowl	PC

FESTO LF-1-D-MAXI G1 Filter Air Source Treatment 159615 PC D Series

After-sales clause:
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly in the following ways:

1, If it is quality problem, buyer can submit argue within 15days after receiving the goods,
buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those
damages coursed by shipping or Man-made damaged ). A 15% restocking fee is
assessed for any products returned in "used" condition. And then we will send a new
product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we
will resend a new product in buyer next order; if buyer don't plan to make a new order in
the near term, buyer can pay the resend shipping cost and ask to resend a new product. If
there is an issue with the products, please contact us– we will solve it as soon as we get
your email.
