Name: Die Cast Zinc Festo Service Unit FRC12DMIDI 159590 GTIN4052568004484
Brand: FESTO
Price: 1 USD

Brand Name : FESTO

Model Number : FRC-1/2-D-MIDI

Place of Origin : China

MOQ : 1pc

Price : EXW USD100-120

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 500 pcs per month

Delivery Time : 7-10working days

Packaging Details : Plastic bag, Carton

Type : FRC-1/2-D-MIDI

Part no : 159590

Brand : FESTO

Weight : 1440 g

Material bowl : PC

Material housing : Die-cast zinc

Contact Now

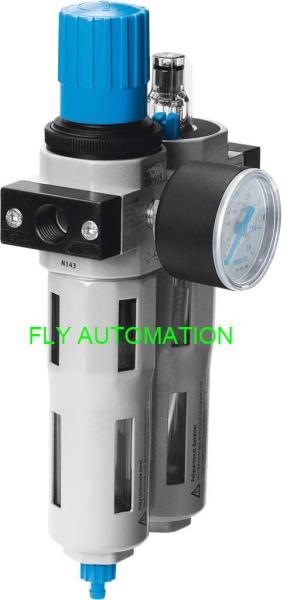

FESTO Service unit FRC-1/2-D-MIDI 159590 GTIN4052568004484

About product

Filter, regulator and lubricator functions in a single unit

High flow rate and highly efficient at removing contaminants

Good regulation characteristics with minimal pressure hysteresis

Setting values are secured by latching the rotary knob

Technical Data

Size	Midi
Series	D
Actuator lock	Rotary knob with detent
Condensate drain	Manually rotating
Max. condensate volume	43 ml
Bowl guard	Metal bowl guard
Symbol	00991549
Pressure gauge (ANALOG) or Pressure display (DIGITAL)	With pressure gauge
Operating pressure	1 bar ... 16 bar
Pressure regulation range	0.5 bar ... 12 bar
Max. pressure hysteresis	0.2 bar
Standard nominal flow rate	2600 l/min
Operating medium	Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Air purity class at output	Compressed air to ISO 8573-1:2010 [7:8:-] Inert gases
Media temperature	-10°C-60°C
Ambient temperature	-10°C-60°C
Product weight	1440 g
Type of mounting	In-line installation With accessories
Pneumatic connection, port 1	G1/2
Pneumatic connection, port 2	G1/2
Note on materials	RoHS-compliant
Material housing	Die-cast zinc
Material bowl	PC

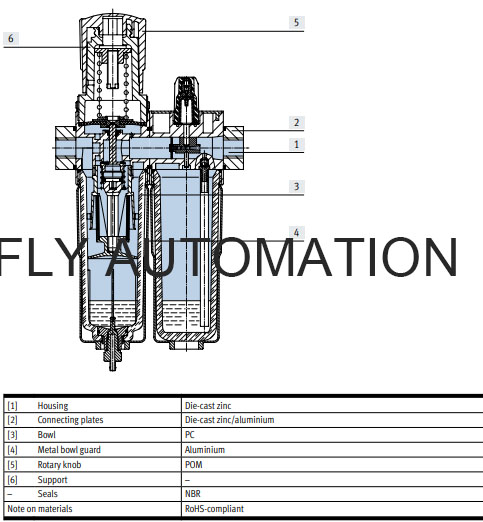

Sectional view
