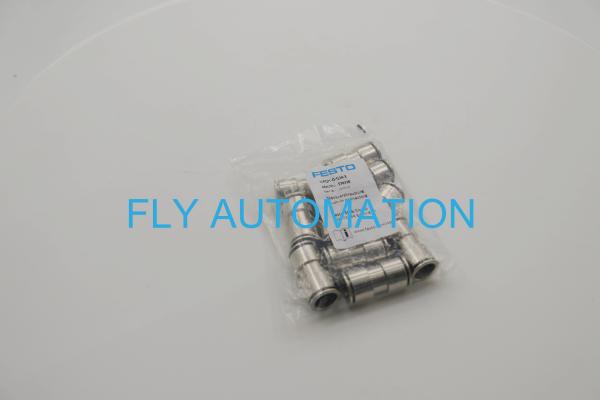

Festo Connector NPQH-D-Q14-E-P10 578328 Pneumatic Tube Fittings

Name: Festo Connector NPQHDQ14EP10 578328 Pneumatic Tube Fittings
Brand: FESTO
Price: 1 USD

Festo Connector NPQH-D-Q14-E-P10 578328 Pneumatic Tube Fittings Manufactures

Brand Name : FESTO

Model Number : NPQH-D-Q14-E-P10

Place of Origin : China

MOQ : 1 PCS

Price : EXW USD3-5

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 2000 pcs per week

Delivery Time : 7-10 working days

Packaging Details : plastic bag, carton

Brand : FESTO

Specifications : NPQH-D-Q14-E-P10

Order no : 578328

Size of pack : 10

LABS (PWIS) conformity : VDMA24364-B1/B2-L

Ambient temperature : 0°C-150°C

Contact Now

Festo Connector Connector NPQH-D-Q14-E-P10 578328 Pneumatic Tube Fittings

About product

Pneumatic connection, port 1:For tubing outer diameter of 14 mm

Pneumatic connection, port 2:For tubing outer diameter of 14 mm

Choosing the right fitting is effortless. With a system that includes well over 1000 types of standard and function fittings, Festo offers a secure solution for every connection.

Product Technical Data

Size	Standard
Nominal size	13 mm
Tubing insertion depth	22.5 mm
Design	Straight design
Size of pack	10
Design	Push-pull principle
Symbol	00997424
Corrosion resistance class CRC	3 - high corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 4 according to ISO 14644-1
Ambient temperature	0°C-150°C
Product weight	49.2g
Pneumatic connection, port 1	For tubing outer diameter of 14 mm
Pneumatic connection, port 2	For tubing outside diameter of 14 mm
Note on materials	RoHS-compliant
Material housing	Brass, chemically nickel-plated
Guard ring material	PEI
Material release ring	Brass, chemically nickel-plated
Material tubing seal	FPM
Material tubing clamp component	High-alloy stainless steel
Thrust ring material	PEI

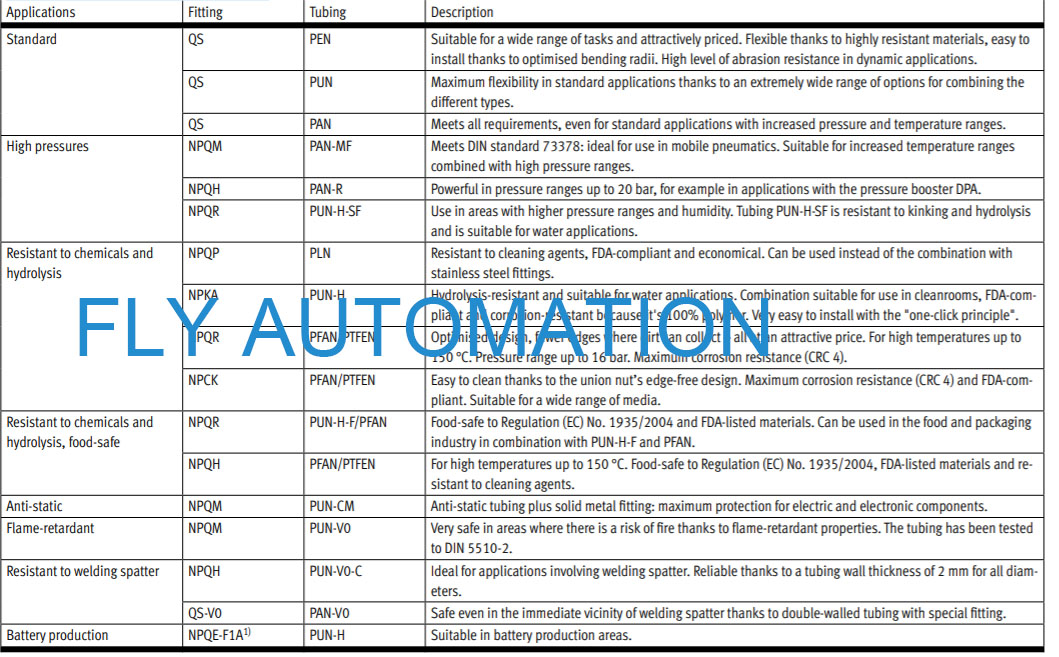

Summary of tubing/fitting combinations

Festo Connector NPQH-D-Q14-E-P10 578328 Pneumatic Tube Fittings

There are so many models.Welcome to enquiry !
