ISO21287 FESTO Compact Cylinder ADN AEN Aluminum 1-10 Bar PU NBR Seals 536243 ADN-20-10-I-P-A

Brand Name : FESTO or OEM

Model Number : 536362 ADN-20-60-I-P-A 536352 ADN-20-60-A-P-A 536259 ADN-25-5-1-P-A 536251 ADN-25-5-A-P-A 536260 ADN-25-10-I-P-A 536252 ADN-25-10-A-P-A 536261 ADN-25-15-1-P-A 536253 ADN-25-15-A-P-A

MOQ : 1pc

Price : EXW USD7.5-65

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1200 pcs per month

Delivery Time : 8-10 working days

Packaging Details : plastic bag, carton，OPP bag

Place of Origin : Germary China

Cylinder barrel : Wrought aluminium alloy

Design : Piston Piston rod

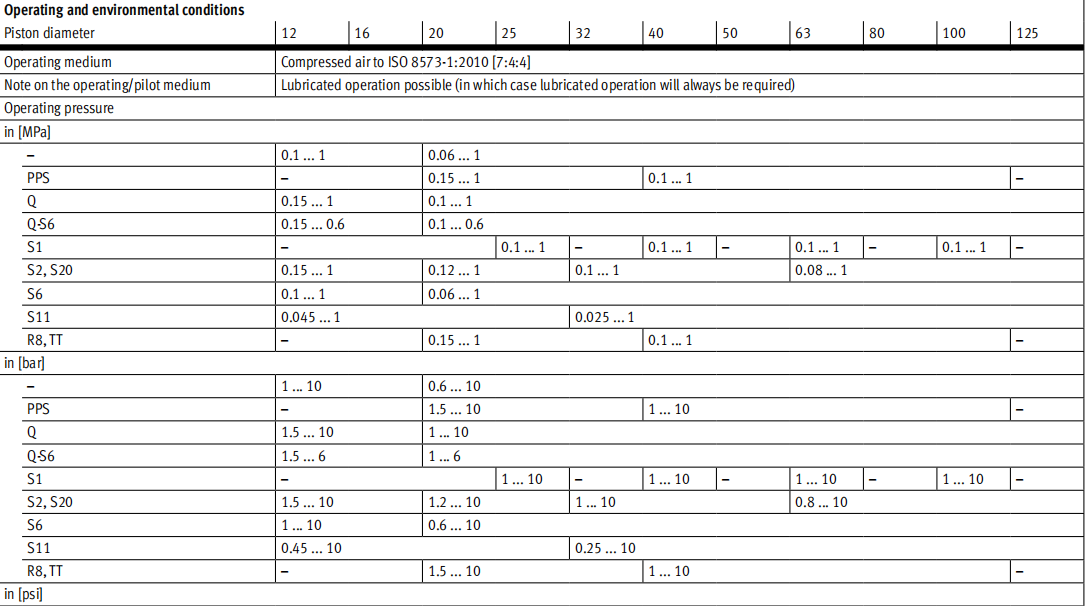

Working Pressure : 0-10Bar

Operating medium : Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium : Lubricated operation possible (in which case lubricated operation will always be required)

Ambient temperature : -20°C-80°C

Piston Material : High-alloy steel,and High-alloy stainless steel

Seals : Polyurethane, nitrile rubber and Fluoro rubber

Bearing and end cap : Wrought aluminium aloy

Flange screws : Quenched and tempered steel or High-alloy stainless steel

Contact Now

ISO21287 FESTO Compact cylinder ADN AEN Aluminum 1-10bar PU NBR seals 536243 ADN-20-10-I-P-A

● The compact cylinders comply withor are based on the ISO 21287 stan-
dard, depending on the piston diameter
● The ADN/AEN is characterised by its compact design and wide range of application thanks to the large num-
ber of variants
● The variants can be configured using a modular product svstem
● Integrated cushioning for absorbing residual energy
● Long service life thanks to excep-tional cushioning characteristics and low friction values

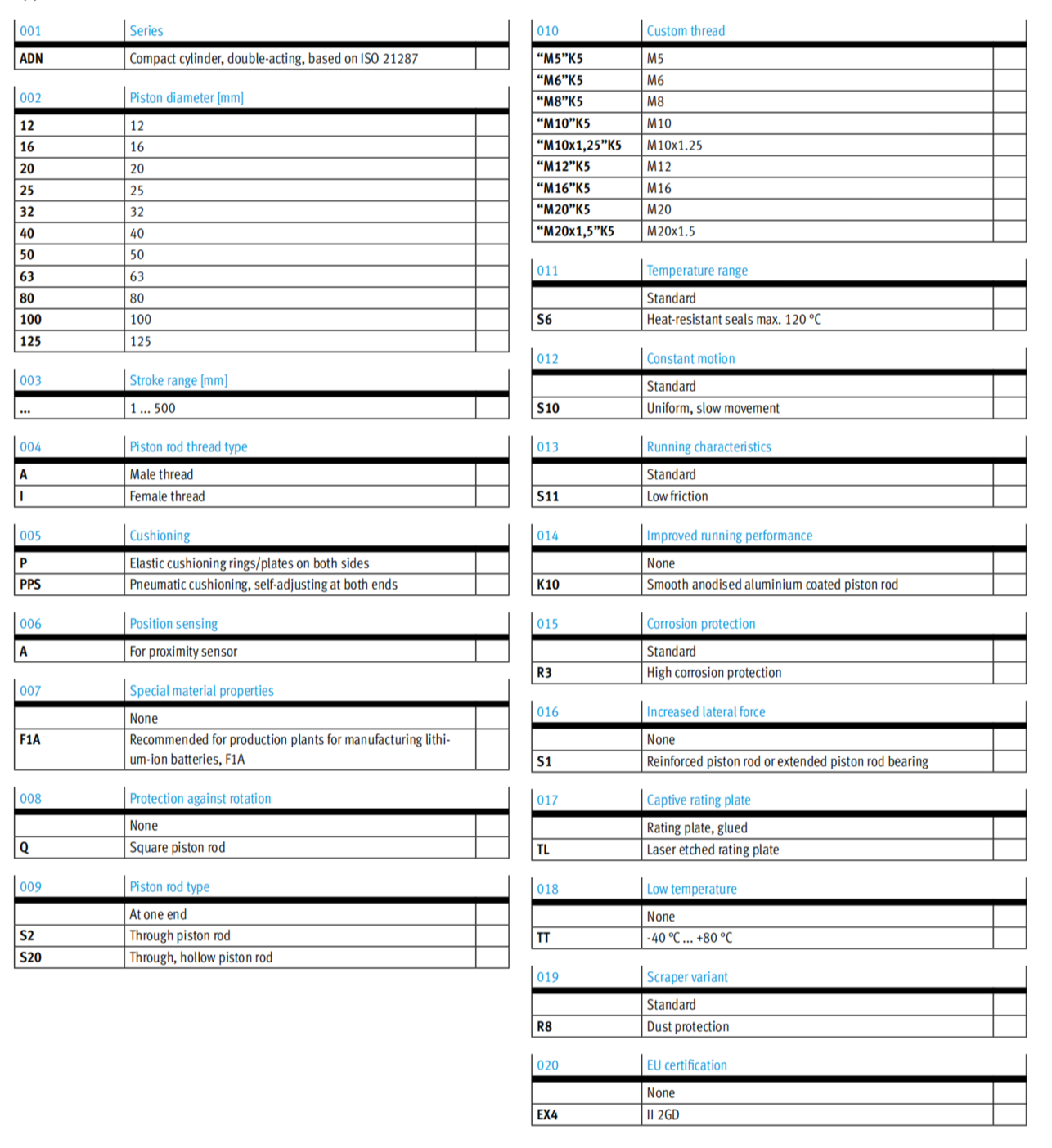

Order Codes:

536211 ADN-12-5-I-P-A 536204 ADN-12-5-A-P-A 536278 ADN-32-5-I-P-A
536212 ADN-12-10-I-P-A 536205 ADN-12-10-A-P-A 536279 ADN-32-10-I-P-A
536213 ADN-12-15-I-P-A 536206 ADN-12-15-A-P-A 536280 ADN-32-15-I-P-A
536214 ADN-12-20-I-P-A 536207 ADN-12-20-A-P-A 536281 ADN-32-20-I-P-A
536215 ADN-12-25-1-P-A 536208 ADN-12-25-A-P-A 536282 ADN-32-25-I-P-A
536216 ADN-12-30-I-P-A 536209 ADN-12-30-A-P-A 536283 ADN-32-30-I-P-A
536217 ADN-12-40-I-P-A 536210 ADN-12-40-A-P-A 536284 ADN-32-40-I-P-A
536226 ADN-16-5-1-P-A 536219 ADN-16-5-A-P-A 536285 ADN-32-50-I-P-A
536227 ADN-16-10-I-P-A 536220 ADN-16-10-A-P-A 536286 ADN-32-60-I-P-A
536228 ADN-16-15-I-P-A 536221 ADN-16-15-A-P-A 536287 ADN-32-80-I-P-A
536229 ADN-16-20-I-P-A 536222 ADN-16-20-A-P-A
536230 ADN-16-25-1-P-A 536223 ADN-16-25-A-P-A 536268 ADN-32-5-A-P-A
536231 ADN-16-30-I-P-A 536224 ADN-16-30-A-P-A 536269 ADN-32-10-A-P-A
536232 ADN-16-40-I-P-A 536225 ADN-16-40-A-P-A 536270 ADN-32-15-A-P-A
536341 ADN-16-50-I-P-A 536331 ADN-16-50-A-P-A 536271 ADN-32-20-A-P-A
536242 ADN-20-5-1-P-A 536234 ADN-20-5-A-P-A 536272 ADN-32-25-A-P-A
536243 ADN-20-10-I-P-A 536235 ADN-20-10-A-P-A 536273 ADN-32-30-A-P-A
536244 ADN-20-15-1-P-A 536236 ADN-20-15-A-P-A 536274 ADN-32-40-A-P-A
536245 ADN-20-20-I-P-A 536237 ADN-20-20-A-P-A 536275 ADN-32-50-A-P-A
536246 ADN-20-25-I-P-A 536238 ADN-20-25-A-P-A 536276 ADN-32-60-A-P-A
536247 ADN-20-30-I-P-A 536239 ADN-20-30-A-P-A 536277 ADN-32-80-A-P-A
536248 ADN-20-40-1-P-A 536240 ADN-20-40-A-P-A
536249 ADN-20-50-I-P-A 536241 ADN-20-50-A-P-A
536362 ADN-20-60-I-P-A 536352 ADN-20-60-A-P-A
536259 ADN-25-5-1-P-A 536251 ADN-25-5-A-P-A
536260 ADN-25-10-I-P-A 536252 ADN-25-10-A-P-A
536261 ADN-25-15-1-P-A 536253 ADN-25-15-A-P-A
536262 ADN-25-20-I-P-A 536254 ADN-25-20-A-P-A
536263 ADN-25-25-I-P-A 536255 ADN-25-25-A-P-A
536264 ADN-25-30-I-P-A 536256 ADN-25-30-A-P-A
536265 ADN-25-40-I-P-A 536257 ADN-25-40-A-P-A
536266 ADN-25-50-I-P-A 536258 ADN-25-50-A-P-A
536383 ADN-25-60-I-P-A 536373 ADN-25-60-A-P-A

ISO21287 FESTO Compact Cylinder ADN AEN Aluminum 1-10 Bar PU NBR Seals 536243 ADN-20-10-I-P-A

ISO21287 FESTO Compact Cylinder ADN AEN Aluminum 1-10 Bar PU NBR Seals 536243 ADN-20-10-I-P-AISO21287 FESTO Compact Cylinder ADN AEN Aluminum 1-10 Bar PU NBR Seals 536243 ADN-20-10-I-P-AISO21287 FESTO Compact Cylinder ADN AEN Aluminum 1-10 Bar PU NBR Seals 536243 ADN-20-10-I-P-A

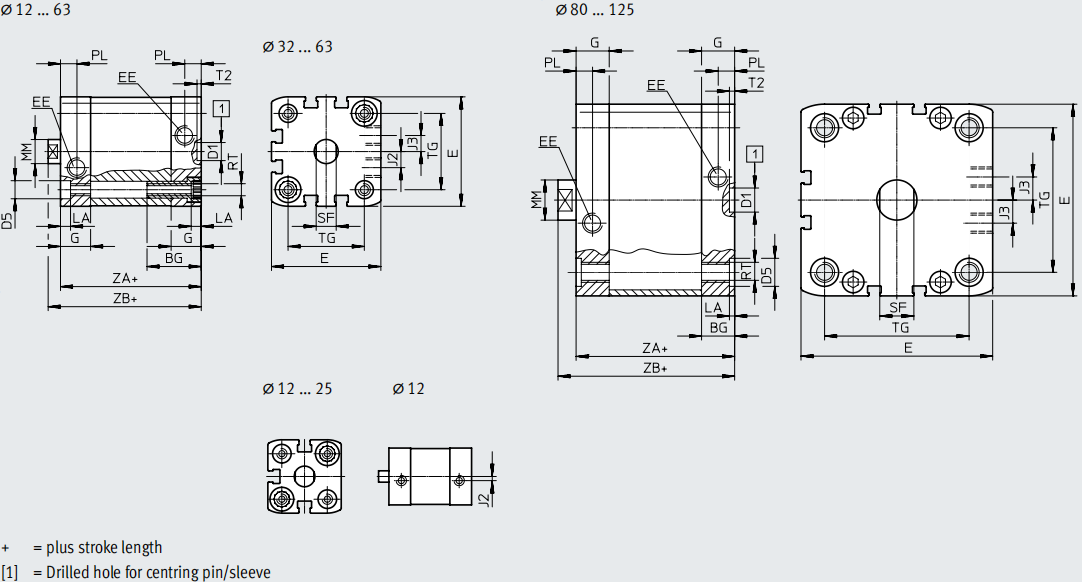

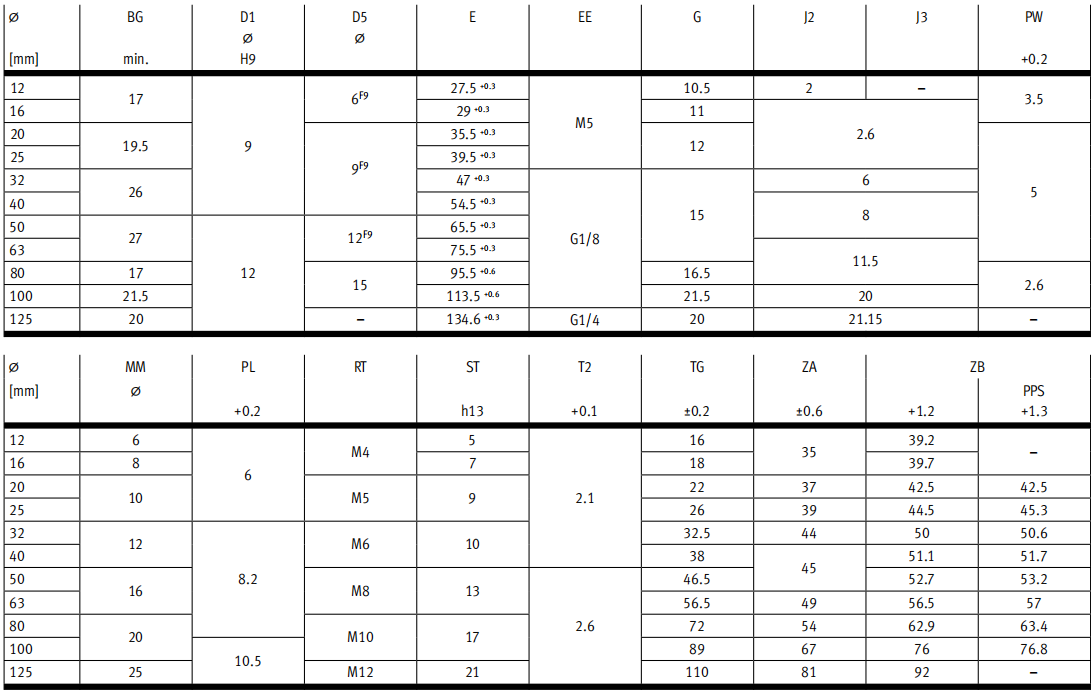

Dimension:

ISO21287 FESTO Compact Cylinder ADN AEN Aluminum 1-10 Bar PU NBR Seals 536243 ADN-20-10-I-P-A

ISO21287 FESTO Compact Cylinder ADN AEN Aluminum 1-10 Bar PU NBR Seals 536243 ADN-20-10-I-P-A

ISO21287 FESTO Compact Cylinder ADN AEN Aluminum 1-10 Bar PU NBR Seals 536243 ADN-20-10-I-P-A
